Chainsaw Bars

Product Highlights

• Available in .325″, .375″ or .404″ pitch single rivet sprocket noses
• Motor mounts available for most makes and models of chainsaws
• Precision squared and flame hardened rails
• Stress relieved heel prevents cracking and reduces vibration
• Available in .050, .058 or .063 gauge
• Available in lengths from 16 to 84 inches
• Precision ground groove to 0.003″ for smooth, straight cutting

Made from formulated, cold rolled, annealed, heat treated, surface ground, and stress relieved steel. This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.

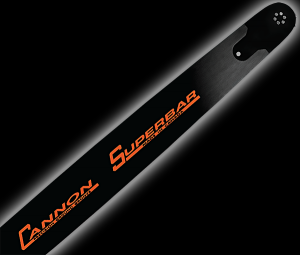

The Cannon SuperBar power plus profile maximizes cutting power and chain speed while reducing damage from loose chain.

A precision ground groove to within .002″ means straighter cuts. Each groove is individually centered for even rail wear and superior durability. This increases rail strength and reduces damage from pinches. Also, if the chain rides exactly square to the rail, the result is smoother and straighter cutting. Milling marks, commonly found in the competitions bars, are eliminated. Thus, the groove is tighter and sloppy chain travel occurs much less.

Cannon SuperBars have flame tempered rails that are hardened to 5 points more than the tie straps on the chain for much longer bar life. This hardening penetrates deep to allow for multiple bar repairs and rebuilds. With the chain running straight and true, the result is a faster and smoother cut.

Product Highlights

• Up to 25% lighter than our SuperBar
• Available in .325″, .375″ or .404″ pitch single rivet sprocket noses
• Motor mounts available for most makes and models of chainsaws
• Precision squared and flame hardened rails
• Stress relieved heel prevents cracking and reduces vibration
• Available in .050, .058 or .063 gauge
• Available in lengths from 16 to 36 inches
• Precision ground groove to 0.003″ for smooth, straight cutting

The Cannon DuraLite SuperBar is Cannon’s first light-weight chainsaw bar. It combines the professional quality of the traditional Cannon SuperBar with the weight reduction the industry has been demanding.

The DuraLite SuperBar is made from a virtually completed SuperBar. After the bar has been grooved and the rails flame hardened, weight is reduced by milling pockets on either side of the bar, leaving a steel core in the center for strength. The center section is then perforated with holes. This method of construction is based on the same principle used in an I-beam.

A special adhesive is used to bond the steel to two flexible aluminum inserts, one on each side of the bar, creating a chemical bond between the inserts. The DuraLite SuperBar remains rigid and durable, with the same quality characteristics as the traditional SuperBar, while weighing up to 25% less.

Product Highlights

• Designed for use with narrow kerf chain on chainsaws under 60 CC
• Narrow profile for high maneuverability. 1.75″ tip diameter (2.5″at widest point of bar)
• Available in .325″ pitch and 3/8″ low profile.
• Motor mounts available for most makes and models of chainsaws
• Precision squared and flame hardened rails for a long lasting bar
• Available in .050″ gauge
• Precision ground groove to 0.003″ for smooth, straight cutting

Cannon SuperMini Bars have a slender profile and mini sprocket nose, making them ideal chainsaw bars for log-home builders and arborists.

For bucking, limbing, building, carving, or trimming, Cannon SuperMini Bars will help you get the job done. These handcrafted professional bars enable the user to perform a wide range of tasks. SuperMini Bars are not recommended for making bore cuts.

A family of bar mounts is available to fit most saws, in 12″ and 32″ lengths. A hardnosed version is also available (CCA).

All Cannon SuperMini bars are skillfully hand made and put through rigorous quality assurance checks prior to packaging.

These bars are constructed with custom alloy steel that is cold rolled, heat treated, annealed, stress relieved and surface ground.
This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.

Precision squared and flame hardened rails allow for chain to run straight and true, enhancing the speed and smoothness of cut.

The following flyer is in pdf format and gives more information on the mounts, etc. of the Cannon SuperBar.
